Leveling And Drawing Frame

Electric adopts B&R PCC control to improve the reliability of the control system, and selects ACOPOS driver to drive FinePower servo motor. The touch screen technology realizes human-computer interaction and is easy to operate. Equipped with a stable and reliable automatic can changing device, with a directional parking device, a lack of ready canister detection and a feeding canister in place detection device, which greatly reduces the labor intensity.
Evenly:

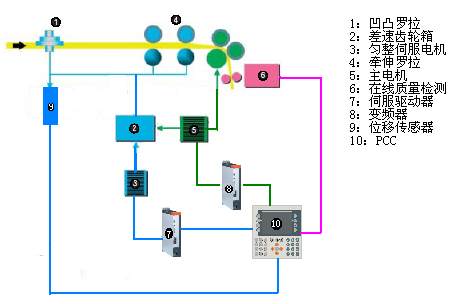

Embedded solution: receive/send data through CAN communication, call the USTER leveling module, and at the same time the USTER module output controls the servo system to achieve leveling control;

B&R solution：

Servo controller with high-speed processing capability, 400us scan cycle;
Unique time-sharing multitasking system;
High-speed communication network Powerlink, 100Mbs;
Mature control scheme, reasonable signal processing and data analysis;
Completely independent customized design concept;
Get out of Uster's confines.

Power range: 0.5KW~11KW
Speed range: 1500rpm~4500rpm
Product series: 5FSNA4, 5FSNA5, 5FSNA7
