The 5FS series stands for permanent magnet servo motors. They are very compact, light and are utilized for those applications where high dynamic performance and precise positioning are required. The main characters are summarized in the following.
■ Compact construction and low weight
■ Minimum moment of inertia and excellent dynamic performance
■ High overload capability/high peak torque
■ Low torque ripple
■ Long life-span, all motor parts except for bearings are free of wear
■ Preassembled grooved ball bearings which are sealed on both sides and greased
■ Connection using two high end circular plugs
■ Embedded Parameter Chip
|
Motor |
Rated power PN [KW] |
Rated speed nN [rpm] |
Rated torque MN [Nm] |
Stall torque M0 [Nm] |
|
5FSNC7 |
5.5 – 31.4 |
1500 - 2000 |
35.0 – 150.0 |
42.0 – 175.0 |

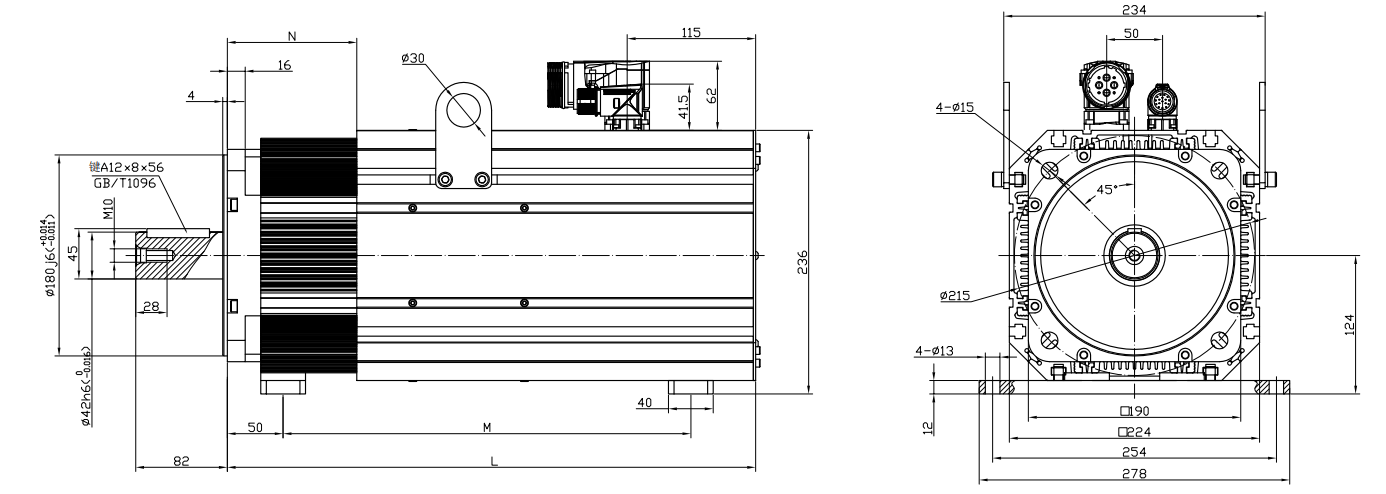

Size
|
Order Key |
L （mm） |
M （mm） |
N （mm） |
|
5FSNC73-nnnXabXn0-0 |
333 |
225 |
81 |
|
5FSNC74-nnnXabXn0-0 |
353 |
245 |
81 |

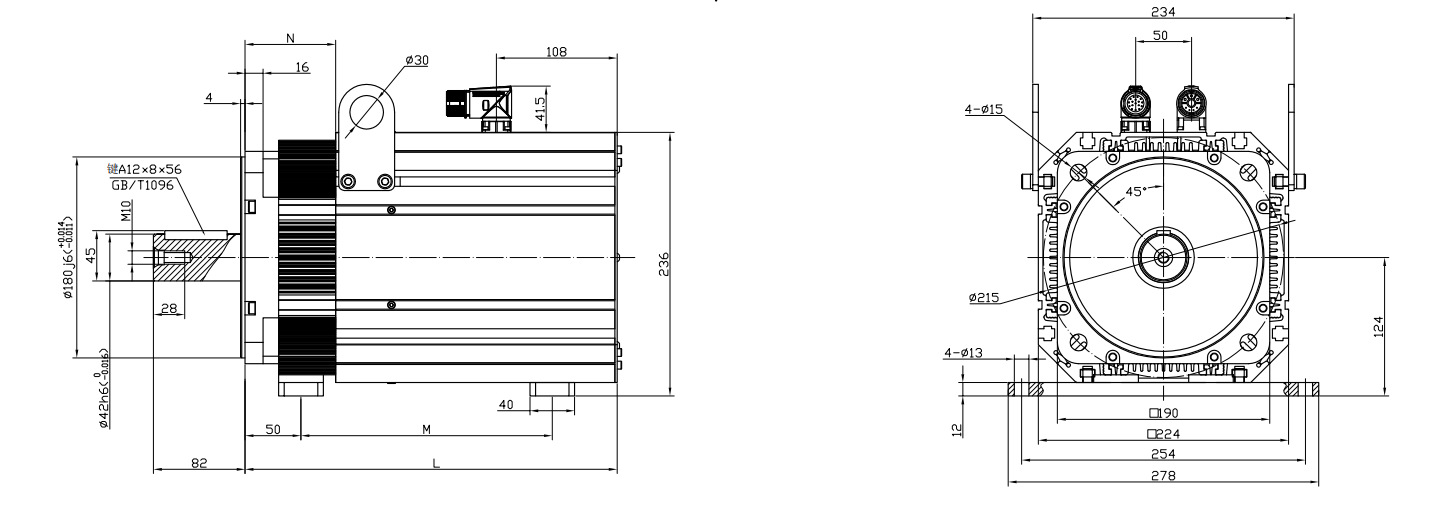

Size
|
Order Key |
L （mm） |
M （mm） |
N （mm） |
|
5FSNC75-nnnXabXn0-0 |
413 |
305 |
116 |
|
5FSNC75P-nnnXabXn0-0 |
453 |
345 |
116 |
|
5FSNC76-nnnXabXn0-0 |
473 |
365 |
116 |
|
5FSNC76P-nnnXabXn0-0 |
513 |
405 |
116 |
|
5FSNC78-nnnXabXn0-0 |
553 |
445 |
116 |
